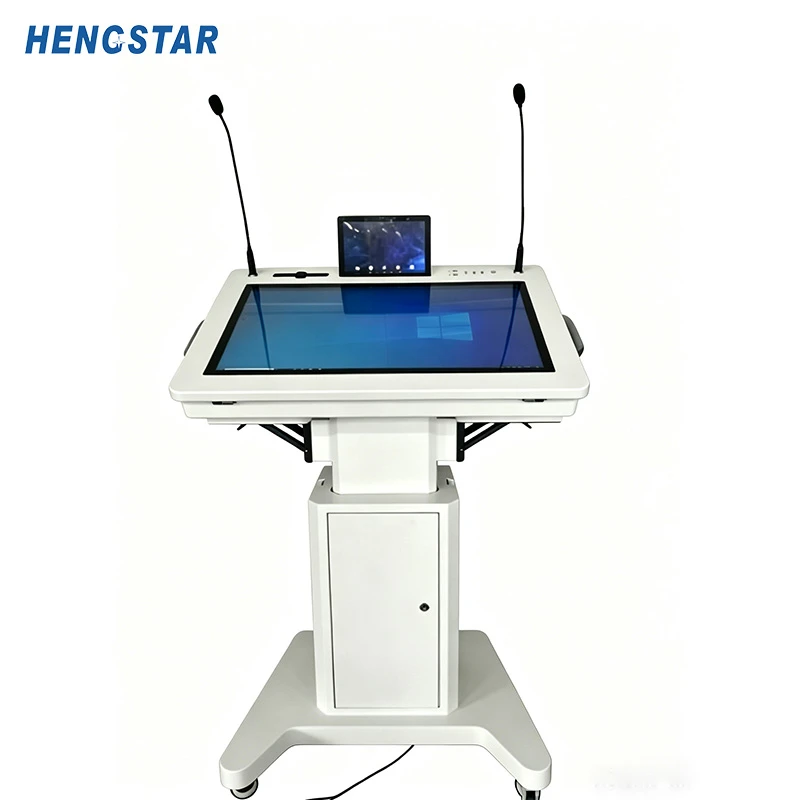

The Hengstar HSIM-3215D10 Smart Elevating Lectern is an all-in-one multimedia podium designed for modern conference rooms, classrooms, training centers, auditoriums, and presentation spaces.
It combines a 32-inch 10-point capacitive touch screen, 21.5-inch Android display, and 10.1-inch synchronized display in one integrated system. The electric lifting column, built-in computer, audio system, and multiple interfaces provide a practical solution for interactive presentations and smart teaching.
Key Features
Triple-Screen Interactive Display
The three-screen design provides separate functions for presenters and audiences:
- 32" Full HD touch screen for presentation control and interaction
- 21.5" Android display with an independent content publishing system
- 10.1" synchronized display for presenter monitoring or teleprompter use
The 32-inch main screen features 1920 × 1080 resolution, 350 cd/m² brightness, and 178° viewing angles.
Electric Height Adjustment
The smart lectern uses a silent electric lifting column with simple up/down controls.
- Height range: 1100–1380 mm
- Lifting stroke: 0–280 mm
- Four hidden lockable casters
- 20° tilted touch screen for comfortable operation
This design allows users of different heights to adjust the podium to a more comfortable working position.
Integrated Audio & Connectivity
The lectern integrates essential presentation equipment into one compact solution.
Audio system:
- 2 × 10 W stereo speakers
- 2 × gooseneck microphones
- XLR microphone interfaces
- 3.5 mm audio interfaces
Connectivity:
- HDMI
- VGA
- USB
- RJ45 LAN
- BNC
Audio interfaces
These interfaces support flexible connection with external displays, projectors, AV systems, and other presentation equipment.
Smart Content Management
The built-in 21.5-inch Android display includes 1 GB RAM and 32 GB storage and supports independent content publishing.
Meeting highlights and other content can be released through a mobile phone, U-disk, or cloud platform. The system also supports functions such as QR-code file transfer, PPT playback, whiteboard writing, welcome pages, and agenda timing.
Technical Specifications
| Item | Specification |
|---|---|
| Model | HSIM-3215D10 |
| Main Display | 32" |
| Main Resolution | 1920 × 1080 |
| Main Touch | 10-point capacitive touch |
| Main Brightness | 350 cd/m² |
| Main Viewing Angle | 178° / 178° |
| Android Display | 21.5" |
| Synchronized Display | 10.1", 1280 × 800 |
| Height Adjustment | 1100–1380 mm |
| Lifting Stroke | 0–280 mm |
| Speakers | 2 × 10 W |
| Microphones | 2 × Gooseneck |
| Input Voltage | AC 110–220 V |
| Rated Power | ≤76 W |
| Standby Power | ≤1 W |
| Service Life | 50,000 hours |
Applications
The Smart Elevating Lectern is suitable for a wide range of professional environments, including:
- Conference rooms

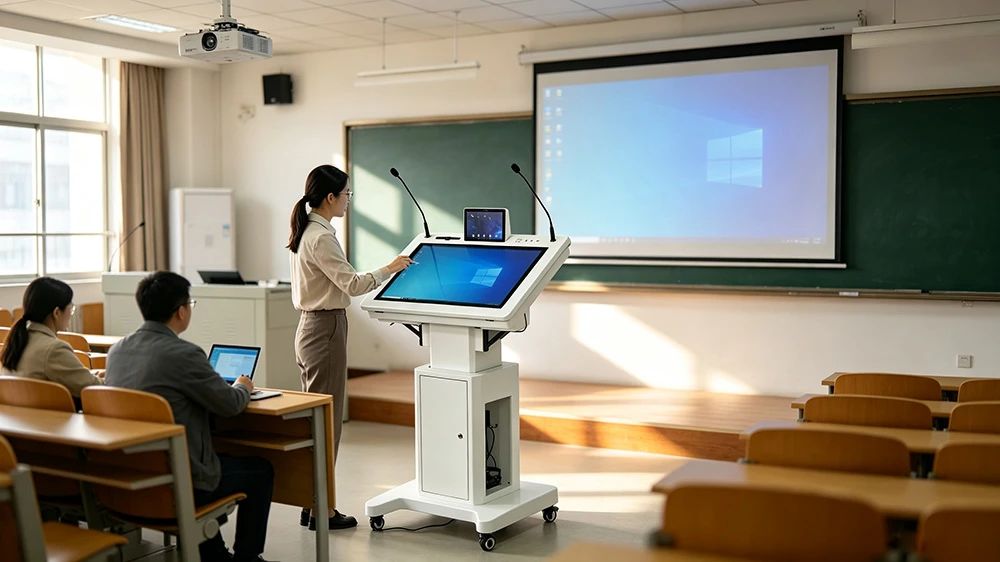

- Smart classrooms
- Universities and schools
- Training centers
- Lecture halls
- Auditoriums
- Press briefing rooms
- Corporate presentation rooms
- Product launch events
It can also synchronize presentation content with projectors, conference flat panels, and fine-pitch LED walls, making it suitable for integrated AV projects.
OEM & ODM Smart Lectern Solutions
Hengstar provides OEM and ODM customization for B2B customers, system integrators, distributors, and project suppliers.
Customization can include product appearance, color, computer configuration, display configuration, interfaces, and application-specific requirements. The standard body is available in white or black, with customized options available on request.
Why Choose Hengstar?
The HSIM-3215D10 combines multiple presentation functions in one professional podium, helping reduce the need for separate equipment while improving presentation efficiency and user interaction.
With its triple-display architecture, electric height adjustment, integrated PC, touch control, audio system, and flexible connectivity, it provides a complete solution for modern teaching, conference, and presentation environments.
Looking for a smart lectern manufacturer for your next project? Contact Hengstar for specifications, OEM/ODM customization, samples, and project quotations.
